CBN Grinding Wheels for Hardened Steel and Precision Grinding
Application-matched vitrified, resin-bond and electroplated CBN grinding wheels for hardened steels, bearing steels, high-speed steel and other suitable ferrous materials. Select cylindrical, internal, surface, form and electroplated wheel configurations according to the workpiece, machine and finish requirement.
Information for quotation
- Workpiece material
- Dimensions and required grit
- Process and target finish
- Quantity and packaging
Current Product Range

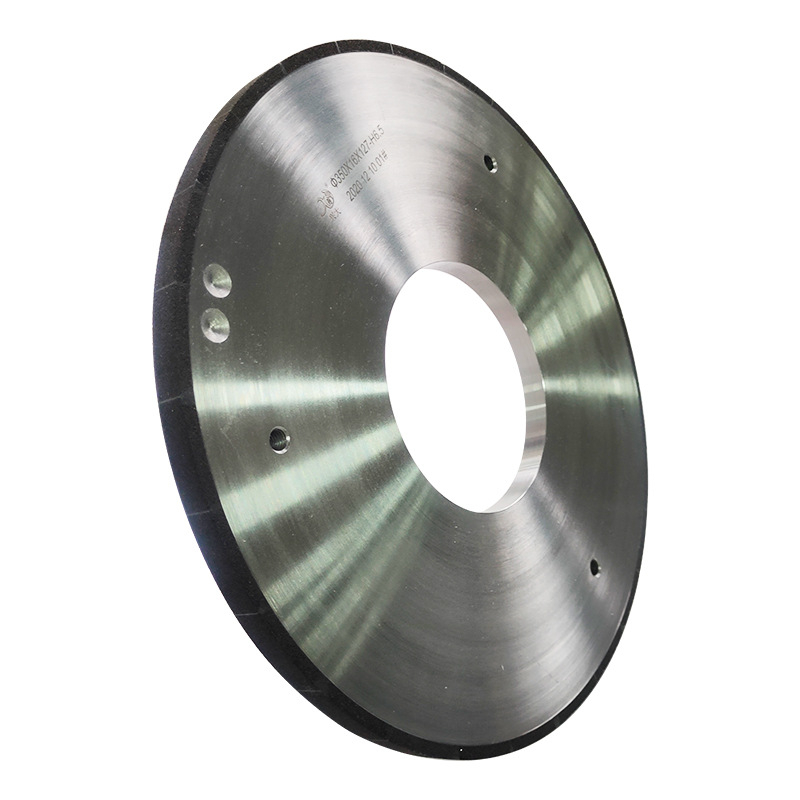

Vitrified Bond CBN Cylindrical Grinding Wheels
Custom vitrified bond CBN grinding wheels for precision external cylindrical and bearing raceway grinding, developed to workpiece, machine and finish requirements.

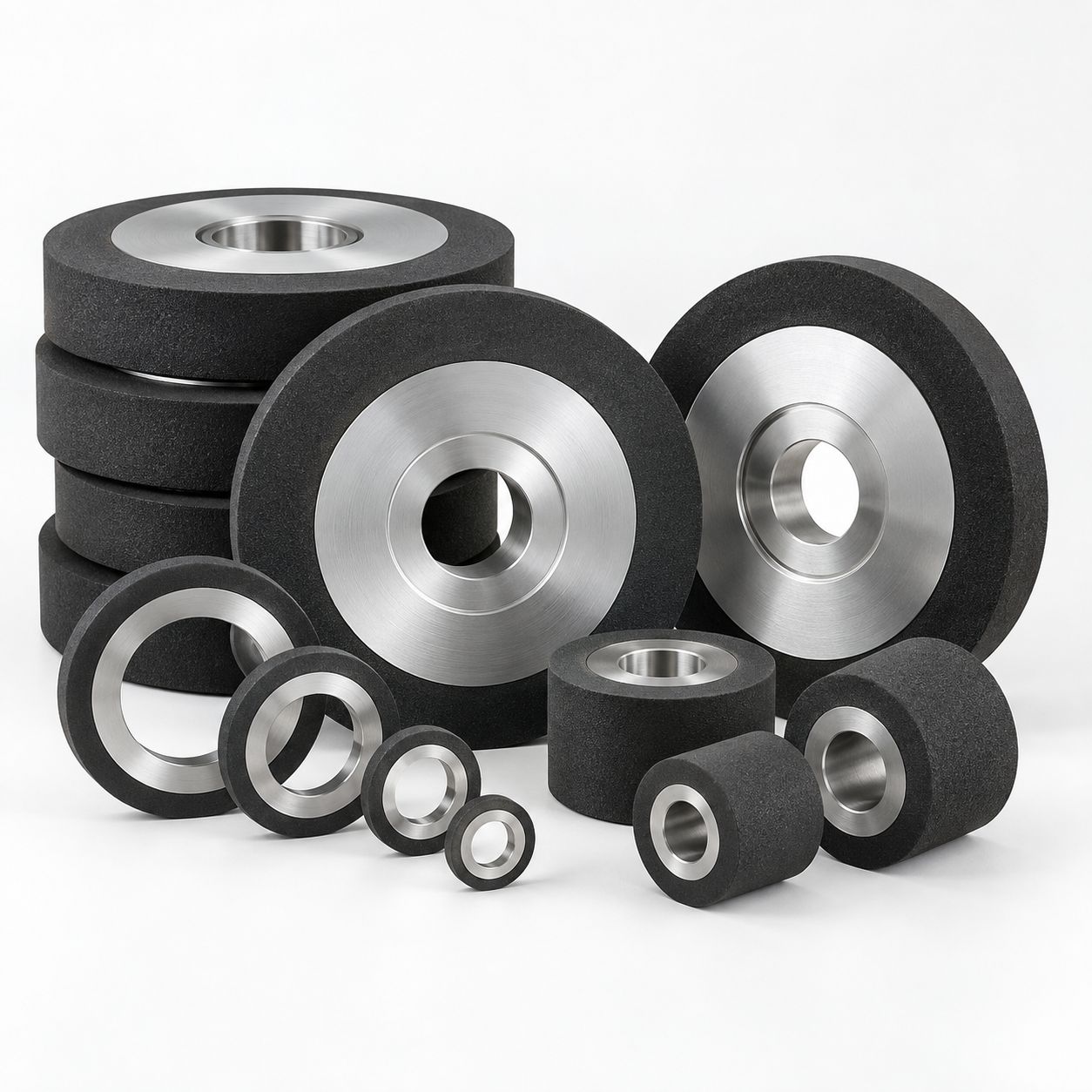

Vitrified-Bond CBN Internal & Groove Grinding Wheels
Compact vitrified-bond CBN wheels for precision internal bore, bearing raceway, roller-screw nut and groove grinding, reviewed to drawing and machine conditions.
Vitrified-Bond CBN Internal Grinding Mounted Points
Compact vitrified-bond CBN mounted points with carbide shanks for precision micro-bore, internal and valve-seat grinding in hardened ferrous components.
Custom CBN Form Grinding Wheels for Screw Grinding
Drawing-based CBN form wheels for planetary roller screws, ball screws and suitable hardened-steel profiles.
Electroplated CBN Band Saw Sharpening Wheels
Profile-matched electroplated CBN wheels for industrial band saw blade resharpening, with 5-inch, 6-inch and 8-inch options shown.
Electroplated CBN & Diamond JG Mounted Points
Small-diameter, long-shank mounted points for jig grinding and precision internal grinding, customized to the workpiece and spindle.
Vitrified-Bond CBN Internal Grinding Wheels with Arbor
Custom vitrified CBN wheels with integral arbors for precision bore grinding in bearing steel, HSS and other hardened ferrous materials.
Need help matching the product to your application?
Choose the Right CBN Grinding Wheel for Your Application
CBN wheel performance depends on the complete grinding system. Send the application details below so the wheel shape, bond, abrasive specification and dimensions can be reviewed before quotation.
Workpiece
- Material grade and hardness
- Part geometry and allowance
- Required tolerance and surface finish
Grinding process
- Cylindrical, internal, surface or form grinding
- Machine model and spindle speed
- Coolant and dressing conditions
Wheel specification
- Drawing or wheel dimensions
- Current grit, concentration and bond
- Trial quantity and annual demand
Typical CBN Grinding Applications
Hardened steel components
Bearing rings, races, shafts, gears, sleeves and other hardened ferrous parts requiring stable size and surface finish.
Precision internal grinding
Small bores, internal raceways, grooves and valve-seat features using wheel, mounted-point or wheel-with-arbor configurations.
Profile and sharpening operations
Form grinding for screw profiles and electroplated CBN wheels for suitable industrial band-saw blade sharpening.
CBN Grinding Wheel FAQs
Which materials are suitable for a CBN grinding wheel?
CBN is primarily selected for hardened ferrous materials such as hardened steels, bearing steels and suitable high-speed or tool steels. Diamond is generally preferred for carbide, ceramics and many non-ferrous hard materials.
Can CBN grinding wheels be made to a drawing?
Yes. Wheel dimensions, working profile, bore or arbor geometry, grit, concentration and bond can be reviewed against the drawing and operating conditions.
What information is needed for a quotation?
Provide the workpiece material and hardness, grinding operation, machine model, wheel drawing or dimensions, current specification if available, target finish, quantity and expected annual usage.
Send Your CBN Grinding Requirements
Share the workpiece, machine, wheel dimensions and target finish. We will review the application before preparing a B2B quotation.
