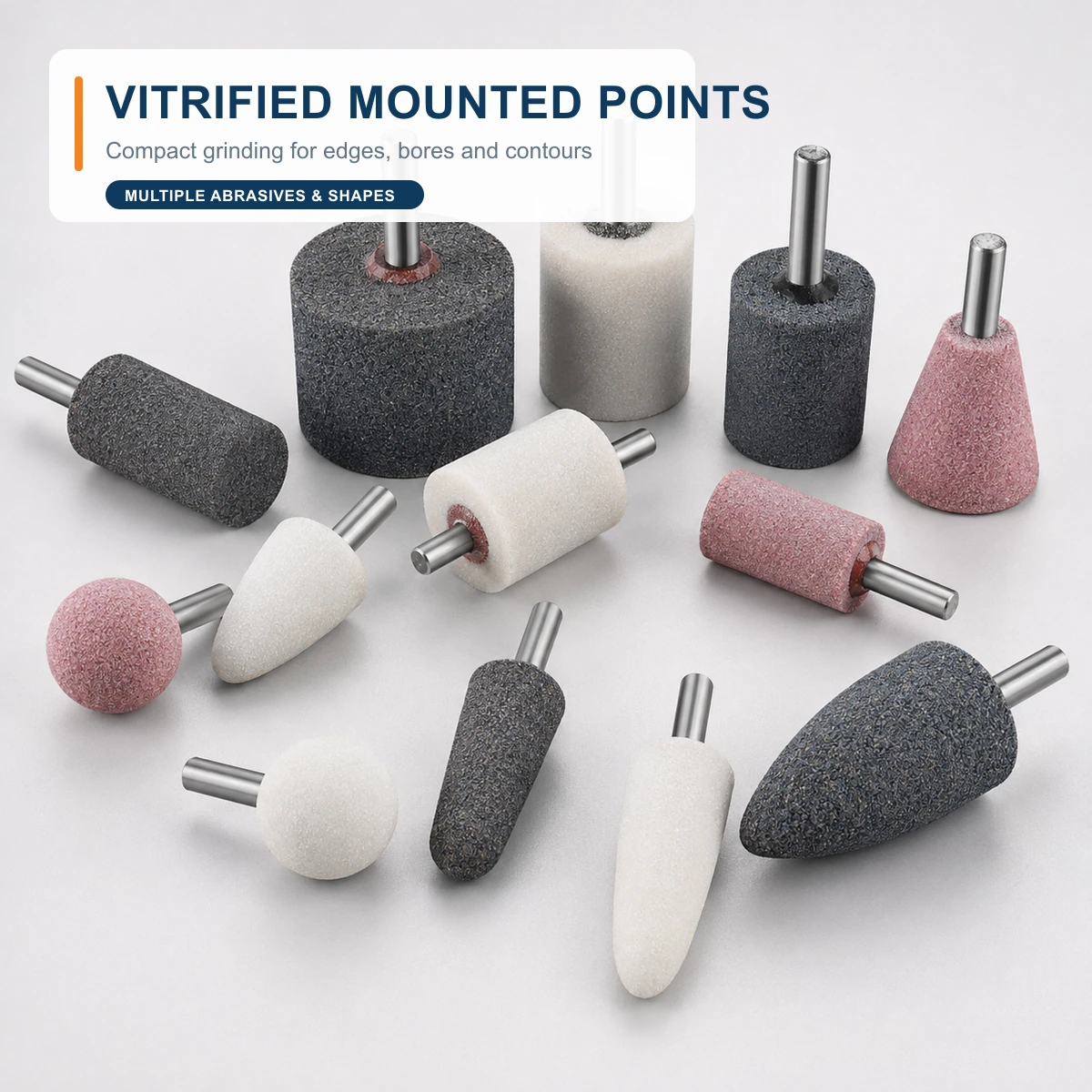

VITRIFIED MOUNTED POINTS
WW-VMP Vitrified Mounted Points
Compact vitrified grinding points in multiple shapes and abrasive options for edges, bores, grooves and contours.
Wewin reference WW-VMP · 6 mm shank confirmed · Multiple head shapes
Product Overview
WW-VMP mounted points provide compact grinding access for internal features and detailed finishing. Head geometry and abrasive mineral are selected to match the workpiece, stock-removal requirement and operating speed.
Key Product Features

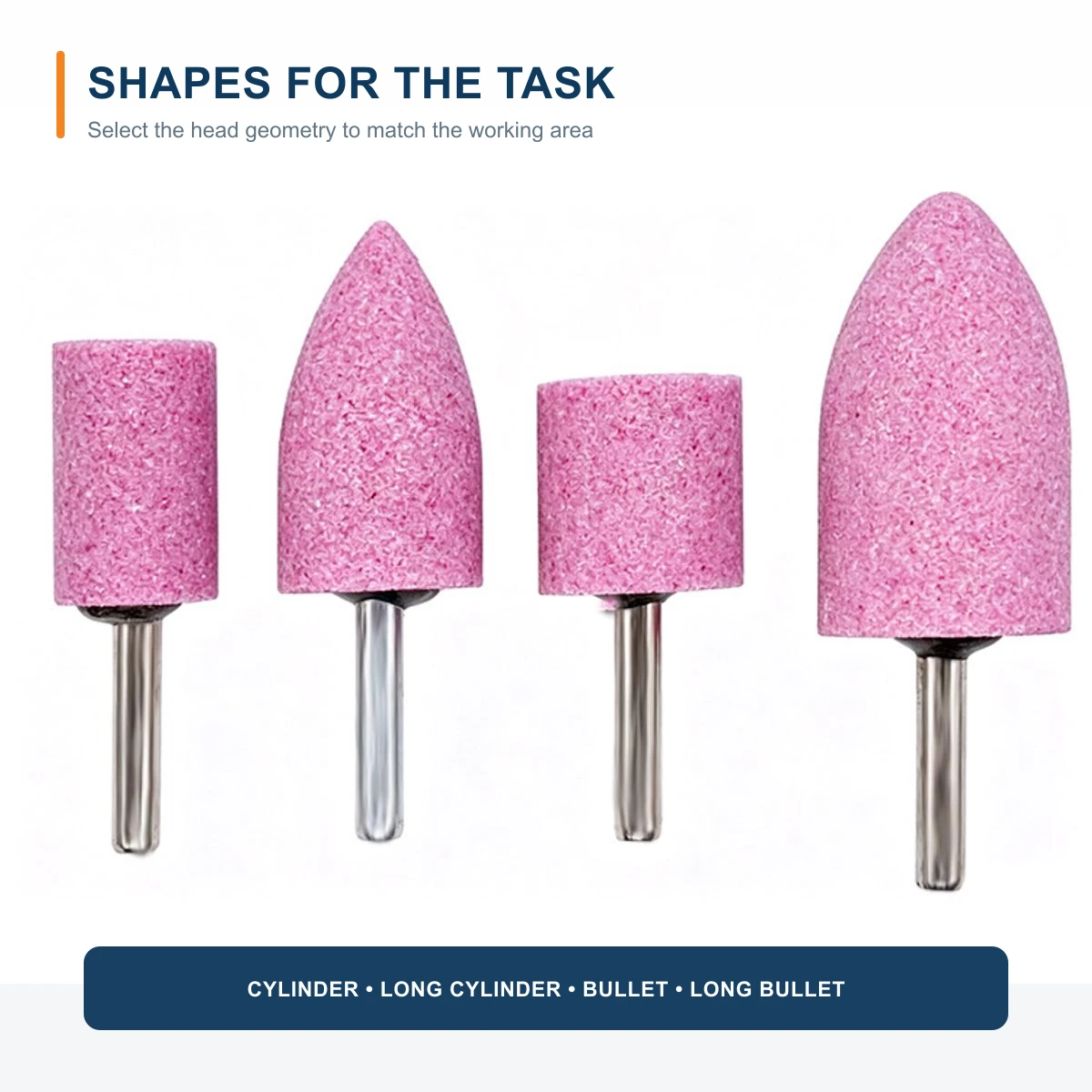

- Cylinder, long-cylinder, bullet, long-bullet, ball and cup-style shapes
- White, brown and pink aluminum oxide options shown
- 6 mm shank confirmed in the available data
- Compact format for bores, grooves and restricted areas
- Vitrified construction for controlled shape retention
- Custom head size and shape selection by application
Technical Information
Verified information and order-specific items are separated below to support accurate quotation and machine matching.
| Item | Available Information | Status |
|---|---|---|
| Wewin reference | WW-VMP | Internal quotation reference |
| Bond type | Vitrified | Verified |
| Abrasive options | White, brown and pink aluminum oxide | Shown |
| Head shapes | Cylinder, long cylinder, bullet, long bullet, ball, cup/flared and T-style | Shown |
| Confirmed shank | 6 mm | Verified |
| 3 mm shank | Available on request; confirm | Order-specific |
| Head dimensions, grade and safe speed | Confirm for quotation | Order-specific |
Recommended Applications
- Deburring holes and internal edges
- Grinding grooves, radii and small profiles
- Tool-room and die-maintenance work
- Finishing steel, hardened steel and general metal parts
Information Needed for Quotation
- Head shape and dimensions
- Abrasive mineral and grit
- Shank diameter and tool type
- Workpiece material and operating speed
- Quantity and packaging requirements
Related Products
WW-GCS612 Green Silicon Carbide Mold Polishing Stones
For manual mold and groove finishing, compare green silicon carbide polishing stones.
WW-WFP100-125 Wool Felt Polishing Wheels
For final polishing with compound, compare wool felt polishing wheels.
Request a Matched Product Specification
Send the application, dimensions, machine details, target finish, quantity and packaging requirements. We will confirm the suitable specification before quotation.
