CERAMIC SANDING BELTS

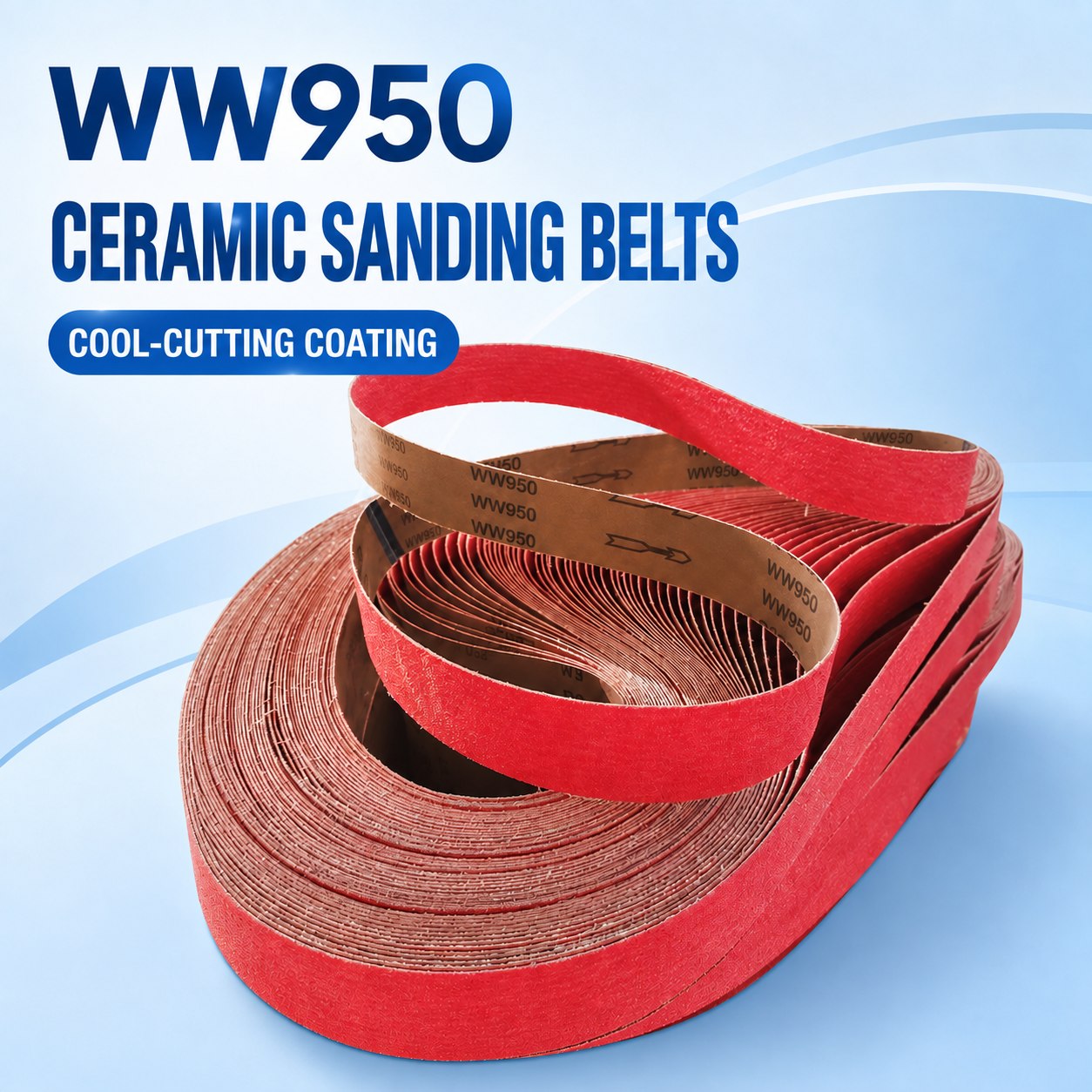

WW950 Ceramic Sanding Belts 10 × 330 mm
Red ceramic endless sanding belts for metalworking applications. The listed example size is 10 × 330 mm; grit, backing, joint construction and custom dimensions are confirmed for each quotation.
Model WW950 · Belt width 10 mm · Belt length 330 mm · Grit to be confirmed
Product Overview
WW950 is a red ceramic coated abrasive belt designed for metalworking applications. The available example size is 10 × 330 mm, with custom belt dimensions reviewed according to application and machine requirements. Grit, backing, joint construction and machine compatibility are confirmed for each order.
Key Product Features
- WW950 ceramic abrasive
- Red coated endless-belt construction
- 10 × 330 mm listed size
- Grit selected for the application
- For metal grinding and polishing
- Custom belt dimensions available on request
Technical Information
Wewin model WW950 is shown with the verified product information. Order-specific grit, backing, joint and tolerances are confirmed before production.
| Item | Available Information | Status |
|---|---|---|
| Wewin model | WW950 | Wewin product reference |
| Abrasive | Ceramic abrasive | Available specification |
| Color | Red | Confirmed from product images |
| Belt width | 10 mm | Available specification |
| Belt length | 330 mm circumference | Available specification |
| Grit range | Confirm for quotation | Application-dependent |
| Backing and joint | Match to machine and grinding load | Confirm for quotation |
| Custom dimensions | Indicated as available | MOQ and limits to confirm |
Metal Grinding Application

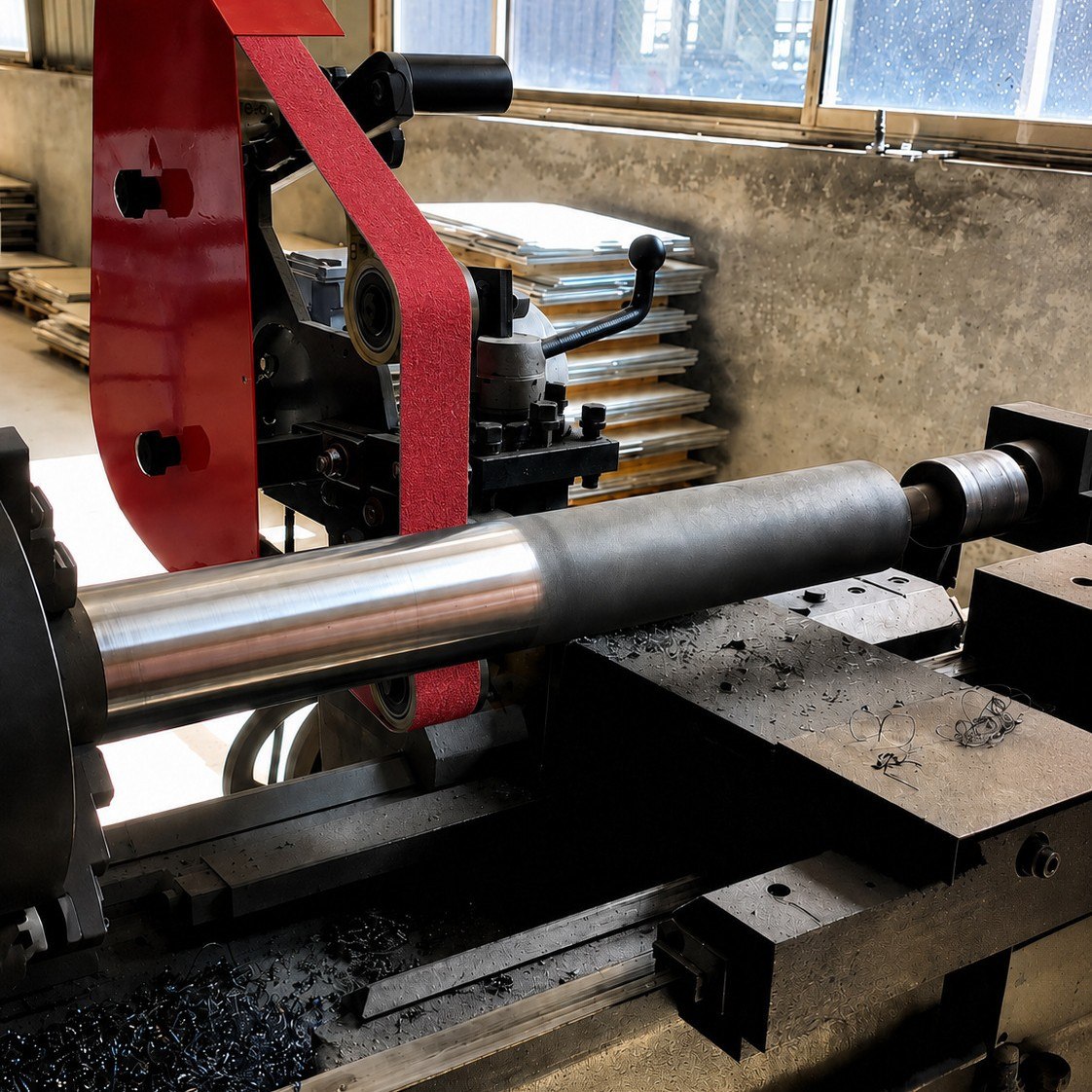

The red ceramic belt is shown in a cylindrical metalworking setup. Select the grit, backing and joint construction according to the workpiece, removal rate, machine conditions and required finish.
- Metal edge and surface grinding
- Weld-area preparation and blending
- General metal surface preparation
Information Needed for Quotation
- Required belt width and length
- Grit size or current belt marking
- Workpiece material and operation
- Machine model and operating speed
- Trial quantity and annual demand
- Packaging or private-label needs
APPLICATION RECOMMENDATION
Recommended Applications & Selection Guidance
Red is used for this WW950 ceramic belt, but color is only a visual identifier within the product range. Final selection must be based on abrasive type, grit, backing, joint, machine conditions and the approved process.
- High-load grinding of stainless steel and other difficult-to-grind metals
- High-value alloy components where belt life, heat control and process consistency matter
- Aerospace and precision metal components only after belt specification and grinding trials are approved
Higher-value workpieces can justify a higher-performance ceramic belt when it reduces heat, belt changes, cycle time or scrap risk. It should not be selected only because the workpiece is expensive; confirm the exact process and run a controlled trial first.
Related Product
WW330 Zirconia Alumina Sanding Belts
For heavier metal grinding and weld blending, compare the blue WW330 zirconia alumina belt in the listed 25 × 762 mm format.
Request a WW950 Belt Quotation
Send the belt width, length, grit requirement, machine, workpiece material, grinding task and quantity. We will confirm the available construction, custom-size feasibility and supply details before quotation.
