Products / Depressed-Center Grinding Wheels
DEPRESSED-CENTER GRINDING WHEELS

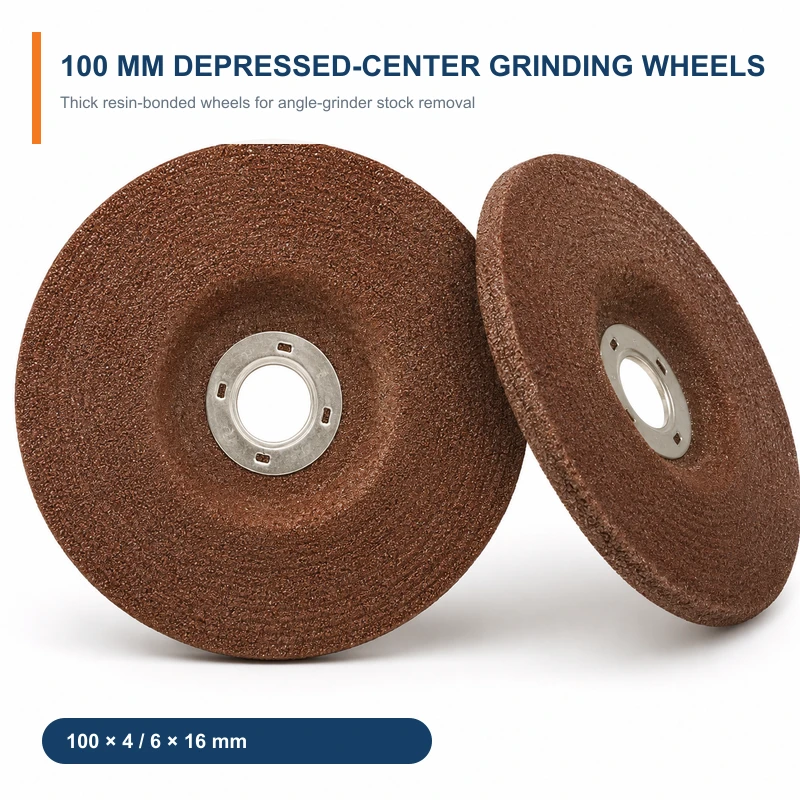

WW-DGW100 Depressed-Center Grinding Wheels
Thick 100 mm resin-bonded wheels for angle-grinder stock removal, edge grinding and weld preparation.
Wewin reference WW-DGW100 · 100 × 4 or 6 × 16 mm
Product Overview
WW-DGW100 covers 100 mm depressed-centre grinding wheels in 4 and 6 mm thicknesses. The wheel is intended for stock removal rather than thin cutting; final abrasive, grade, reinforcement and maximum speed are selected for the application.
Key Product Features
- 100 mm outside diameter
- 4 and 6 mm thickness options
- 16 mm centre bore

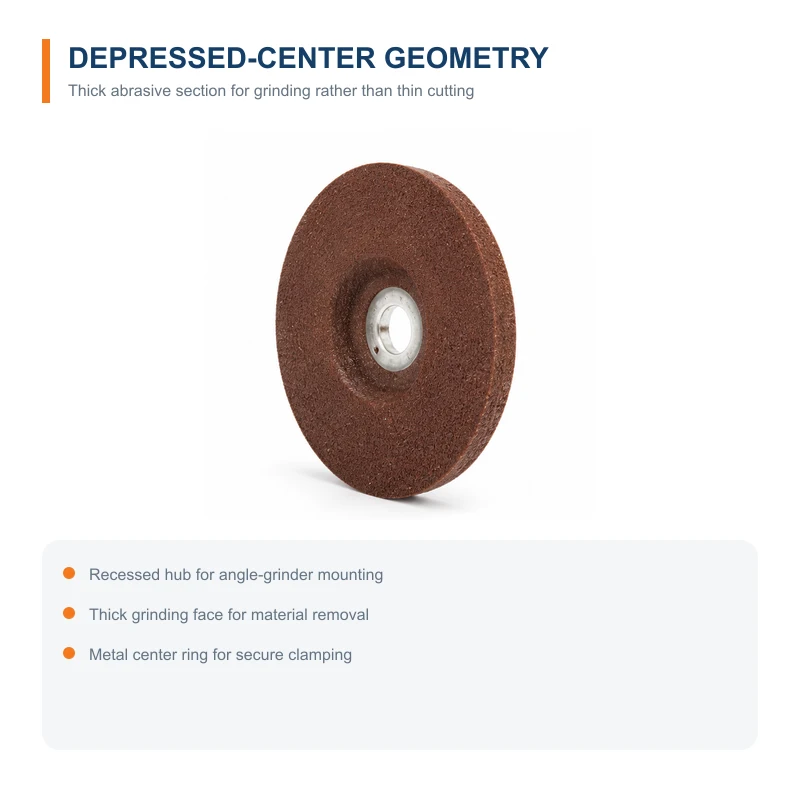

- Depressed-centre geometry for angle-grinder mounting
- Thick grinding face for material removal
- Metal centre ring for secure clamping
Technical Information
Verified information and order-specific items are separated below to support accurate quotation and machine matching.
| Item | Available Information | Status |
|---|---|---|
| Wewin reference | WW-DGW100 | Internal quotation reference |
| Wheel type | Depressed-centre grinding wheel | Verified |
| Size option 1 | 100 × 4 × 16 mm | Verified |
| Size option 2 | 100 × 6 × 16 mm | Verified |
| Colour | Brown | Verified |
| Abrasive, bond and reinforcement | Confirm for quotation | Order-specific |
| Maximum RPM | Confirm from final wheel marking | Order-specific |
Recommended Applications
- Weld preparation and weld-bead grinding
- Edge grinding and chamfering
- General stock removal on steel components
- Fabrication and maintenance grinding
Information Needed for Quotation
- Required thickness and quantity
- Workpiece material
- Removal rate and target finish
- Tool speed and guard compatibility
- Packaging and private-label requirements
Related Products
WW-DCW103 Depressed-Center Cut-Off Wheel
For metal cutting rather than grinding, compare the depressed-centre cut-off wheel.
WW-VSG Type 1 Vitrified Straight Grinding Wheels
For machine-based precision grinding, compare Type 1 vitrified straight wheels.
Request a Matched Product Specification
Send the application, dimensions, machine details, target finish, quantity and packaging requirements. We will confirm the suitable specification before quotation.
