VITRIFIED STRAIGHT GRINDING WHEELS

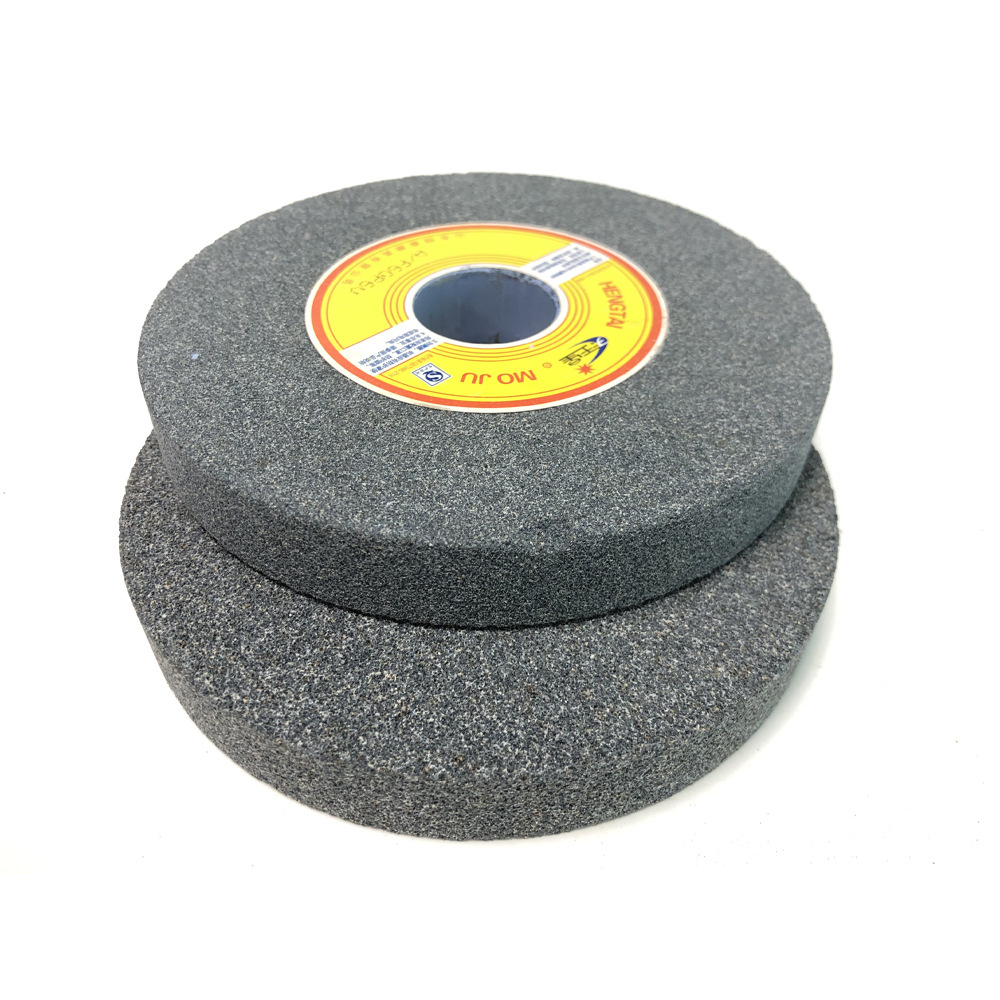

WW-VSG Type 1 Vitrified Straight Grinding Wheels
Type 1 vitrified wheels with aluminum oxide and silicon carbide options for surface and general precision grinding.
Wewin reference WW-VSG · Type 1 parallel face · Mineral selected by workpiece
Product Overview

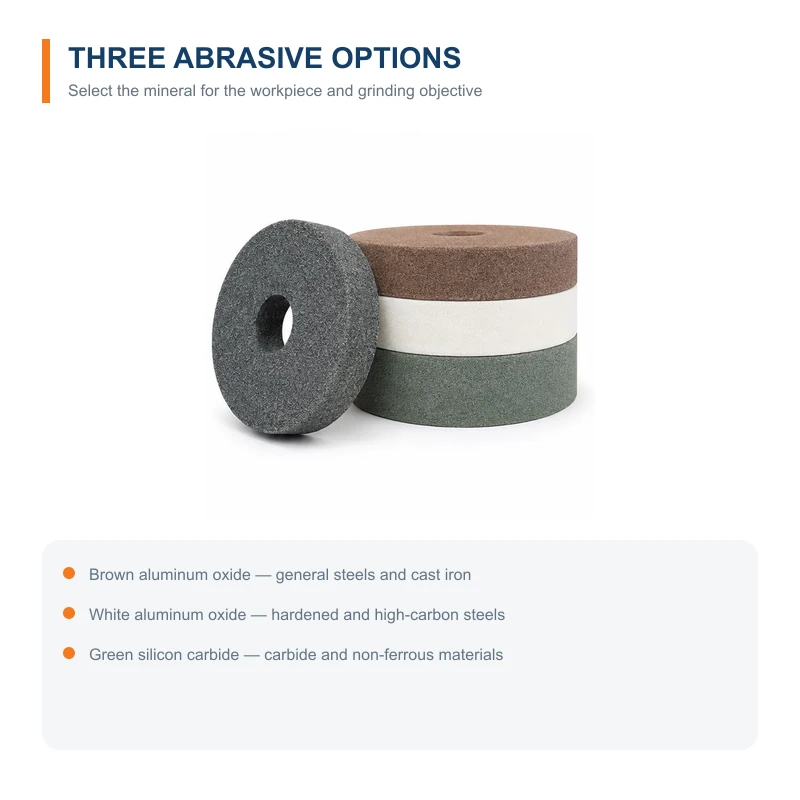

WW-VSG Type 1 straight wheels are configured by abrasive mineral, dimensions, grit, grade, structure and bond. Brown and white aluminum oxide and green silicon carbide options are shown for different workpiece families.
Key Product Features
- Type 1 parallel-face wheel geometry
- Brown aluminum oxide for general steels and cast iron
- White aluminum oxide for hardened and high-carbon steels
- Green silicon carbide for carbide and suitable non-ferrous materials
- Dimensions and wheel specification matched to the machine
- One confirmed green-silicon-carbide sample documented separately
Technical Information
Verified information and order-specific items are separated below to support accurate quotation and machine matching.
| Item | Available Information | Status |
|---|---|---|
| Wewin reference | WW-VSG | Internal quotation reference |
| Wheel type | Type 1 straight wheel | Verified |
| Bond | Vitrified | Verified |
| Abrasive options | Brown aluminum oxide, white aluminum oxide and green silicon carbide | Shown |
| Confirmed sample | 200 × 25 × 32 mm, GC100L, 35 m/s | Applies only to the documented green wheel |
| Other dimensions, grit, grade and speed | Confirm for quotation | Order-specific |
Recommended Applications
- Surface grinding on compatible machines
- General precision grinding of steel and cast iron
- Grinding hardened steels with matched white aluminum oxide
- Grinding carbide and compatible non-ferrous materials with matched silicon carbide
Information Needed for Quotation
- Wheel outside diameter, width and bore
- Machine model, flange and spindle speed
- Workpiece material and hardness
- Required grit, grade, structure and bond
- Quantity, dressing method and balancing requirements
Related Products
WW-VCG300-400 Vitrified Cylindrical Grinding Wheels
For external cylindrical grinding in 300-400 mm diameters, compare WW-VCG300-400.
WW-CGW500 Vitrified Centerless Grinding Wheel 500 × 150 × 305 mm
For a large centerless grinding format, compare WW-CGW500.
Request a Matched Product Specification
Send the application, dimensions, machine details, target finish, quantity and packaging requirements. We will confirm the suitable specification before quotation.
