VITRIFIED CENTERLESS GRINDING WHEELS

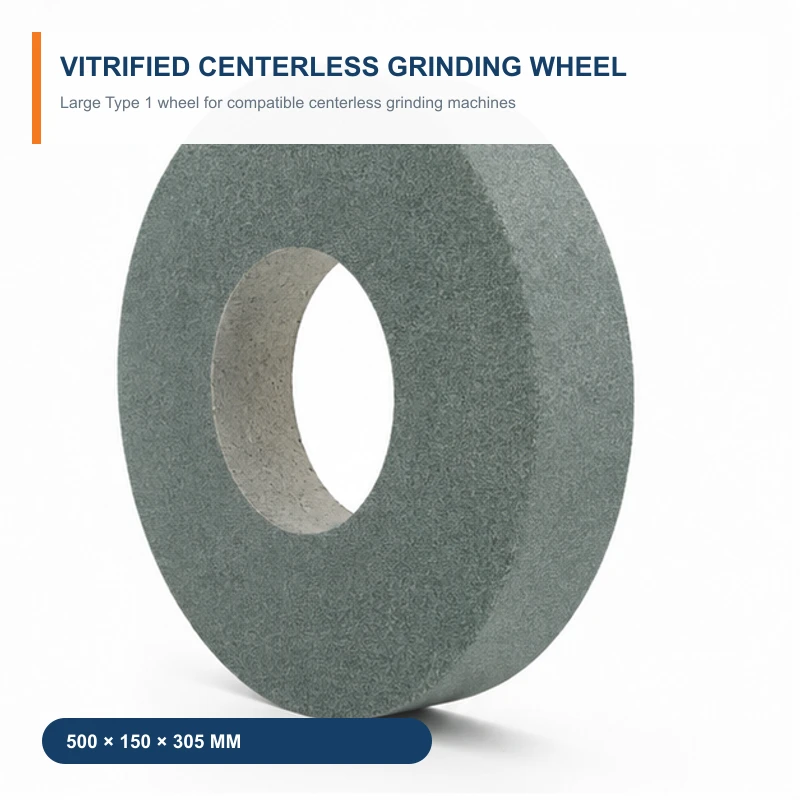

WW-CGW500 Vitrified Centerless Grinding Wheel 500 × 150 × 305 mm
Large Type 1 wheel for compatible centerless grinding machines and continuous external diameter grinding.
Wewin reference WW-CGW500 · 500 × 150 × 305 mm · Type 1
Product Overview
WW-CGW500 is a large Type 1 vitrified wheel in the confirmed 500 × 150 × 305 mm format for compatible centerless grinders. Abrasive mineral, grit, grade, structure, bond and operating speed are specified for the workpiece and machine.
Key Product Features

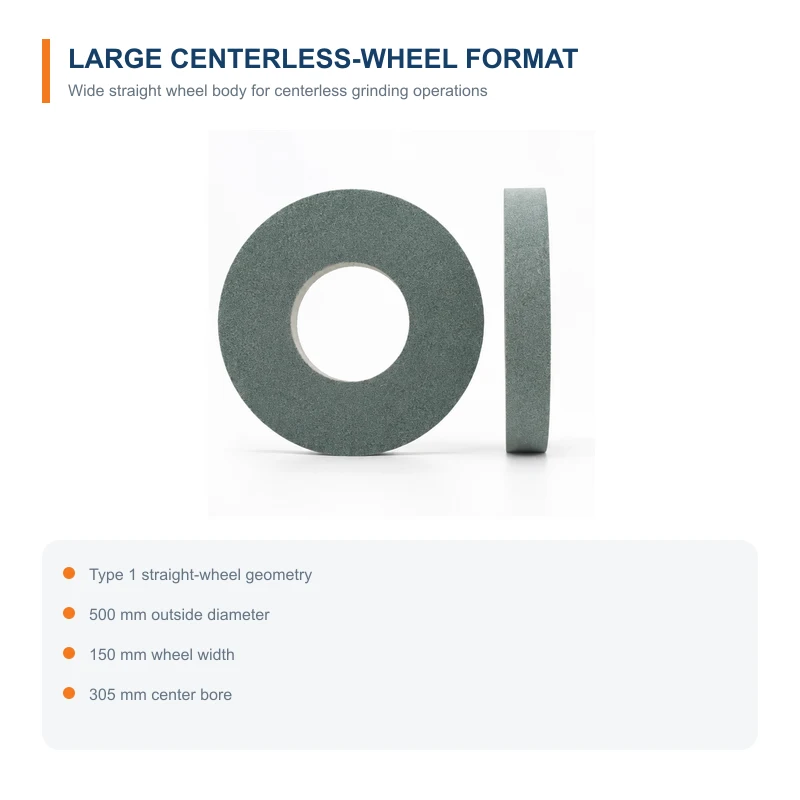

- 500 mm outside diameter
- 150 mm wheel width
- 305 mm centre bore
- Type 1 straight-wheel geometry
- Wide wheel body for centerless grinding operations
- Specification engineered for machine, workpiece and finish target
Technical Information
Verified information and order-specific items are separated below to support accurate quotation and machine matching.
| Item | Available Information | Status |
|---|---|---|
| Wewin reference | WW-CGW500 | Internal quotation reference |
| Wheel type | Type 1 centerless grinding wheel | Verified |
| Dimensions | 500 × 150 × 305 mm | Verified |
| Compatible machine references | M1040, M1080 and M1100 series listed | Confirm exact machine and flange |
| Abrasive, grit and grade | Confirm for quotation | Order-specific |
| Structure, bond and maximum speed | Confirm for quotation | Order-specific |
Recommended Applications
- Through-feed centerless grinding
- In-feed or plunge centerless grinding after process review
- Continuous external-diameter grinding of bars and components
- Production grinding requiring a wide working face
Information Needed for Quotation
- Machine model, flange and operating speed
- Workpiece material, hardness and diameter range
- Through-feed or in-feed process
- Stock removal, finish and cycle target
- Required wheel specification, quantity and dressing method
Related Products
WW-VCG300-400 Vitrified Cylindrical Grinding Wheels
For external cylindrical grinding with multiple diameter and abrasive options, compare WW-VCG300-400.
WW-VSG Type 1 Vitrified Straight Grinding Wheels
For general Type 1 surface grinding, compare WW-VSG straight wheels.
Request a Matched Product Specification
Send the application, dimensions, machine details, target finish, quantity and packaging requirements. We will confirm the suitable specification before quotation.
