Products / Precision Grinding Wheels
VITRIFIED CYLINDRICAL GRINDING WHEELS

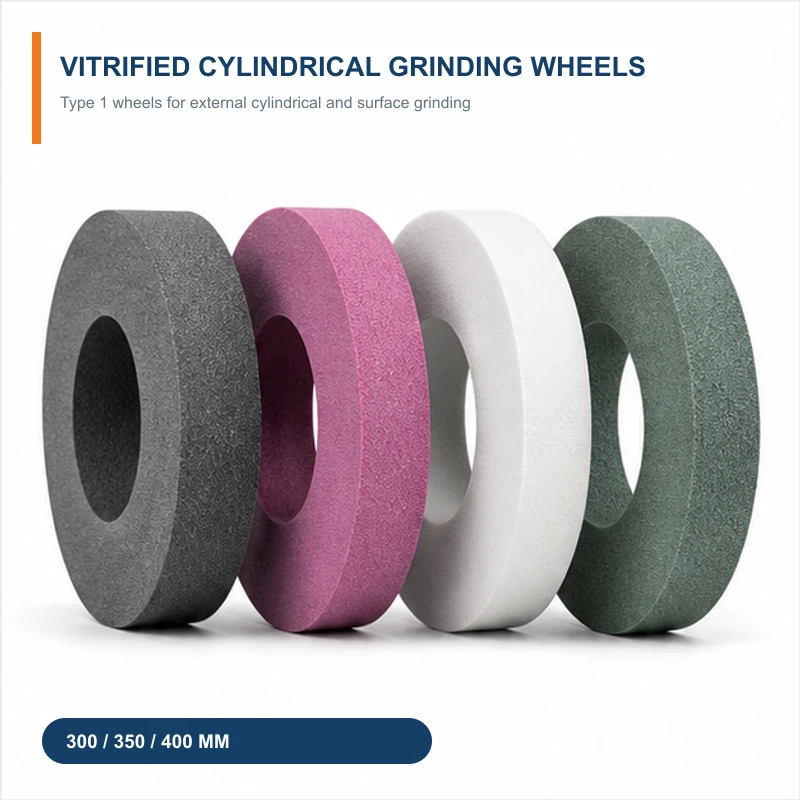

WW-VCG300-400 Vitrified Cylindrical Grinding Wheels
Type 1 vitrified wheels in 300, 350 and 400 mm diameters for external cylindrical and surface grinding.
Wewin reference WW-VCG300-400 · 300, 350 and 400 mm diameters · Grit 24-180
Product Overview
WW-VCG300-400 wheels are available in several diameter, width and bore combinations for compatible cylindrical and surface grinders. Abrasive mineral, grit, grade, structure and bond are matched to the workpiece and grinding objective.
Key Product Features
- Type 1 vitrified wheel construction
- 300, 350 and 400 mm diameter options
- 40 and 50 mm listed wheel widths
- 75, 127 and 203 mm listed bore options
- A, PA, WA, GC and specialty abrasive systems shown
- Grit range 24-180 listed
Technical Information
Verified information and order-specific items are separated below to support accurate quotation and machine matching.
| Item | Available Information | Status |
|---|---|---|
| Wewin reference | WW-VCG300-400 | Internal quotation reference |
| Wheel type | Type 1 vitrified cylindrical grinding wheel | Verified |
| Outside diameters | 300, 350 and 400 mm | Listed |
| Widths | 40 and 50 mm | Listed |
| Bores | 75, 127 and 203 mm | Listed |
| Common formats | 350 × 40 × 127 mm; 400 × 50 × 203 mm | Listed |

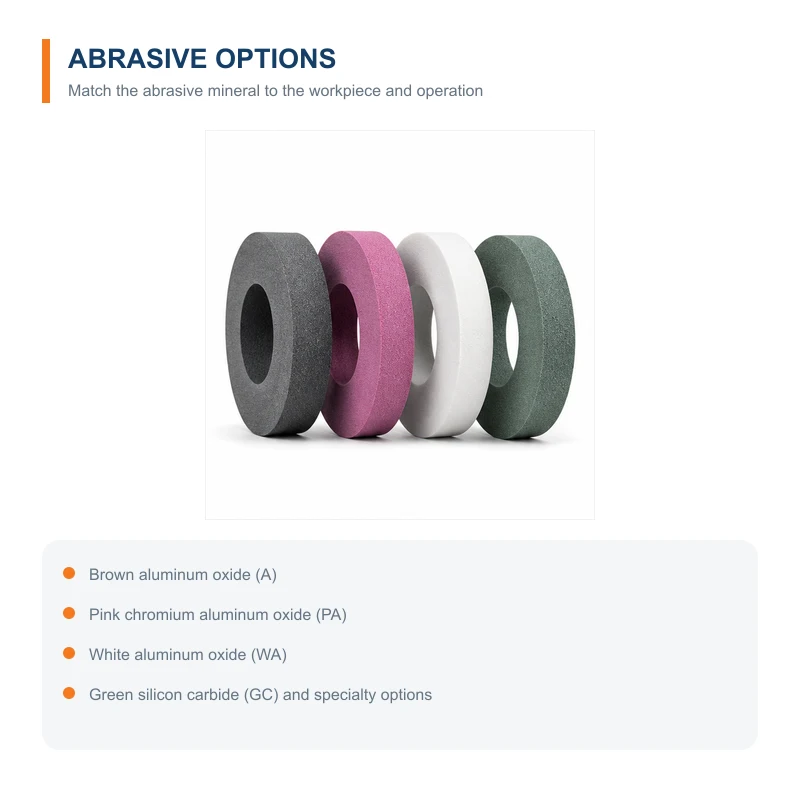

| Abrasives | A, PA, WA, GC, monocrystalline aluminum oxide and porous black silicon carbide | Listed |
| Grit range | 24-180 | Listed |
| Grade, structure, bond and maximum speed | Confirm for quotation | Order-specific |
Recommended Applications
- External cylindrical grinding
- Surface grinding on compatible equipment
- Precision grinding of steels and hardened alloys
- Specialty grinding of carbide, cast iron and suitable non-ferrous materials
Information Needed for Quotation
- Exact wheel dimensions and machine model
- Workpiece material, hardness and allowance
- Required surface finish and cycle target
- Abrasive, grit, grade, structure and bond
- Operating speed, dressing method and quantity
Related Products
WW-VSG Type 1 Vitrified Straight Grinding Wheels
For surface and general Type 1 grinding, compare WW-VSG straight wheels.
WW-CGW500 Vitrified Centerless Grinding Wheel 500 × 150 × 305 mm
For 500 × 150 × 305 mm centerless grinding, compare WW-CGW500.
Request a Matched Product Specification
Send the application, dimensions, machine details, target finish, quantity and packaging requirements. We will confirm the suitable specification before quotation.
